Description
G100 Clevis Self Locking Hook manufactured from forged super alloy steel for secure attachment in G100 chain sling configurations. Features a self-locking mechanism for added safety during lifting operations. Tested at 2.5x WLL with full magnaflux crack inspection, eddy-current pin testing, and fatigue-rated to 20,000 cycles.Technical Data

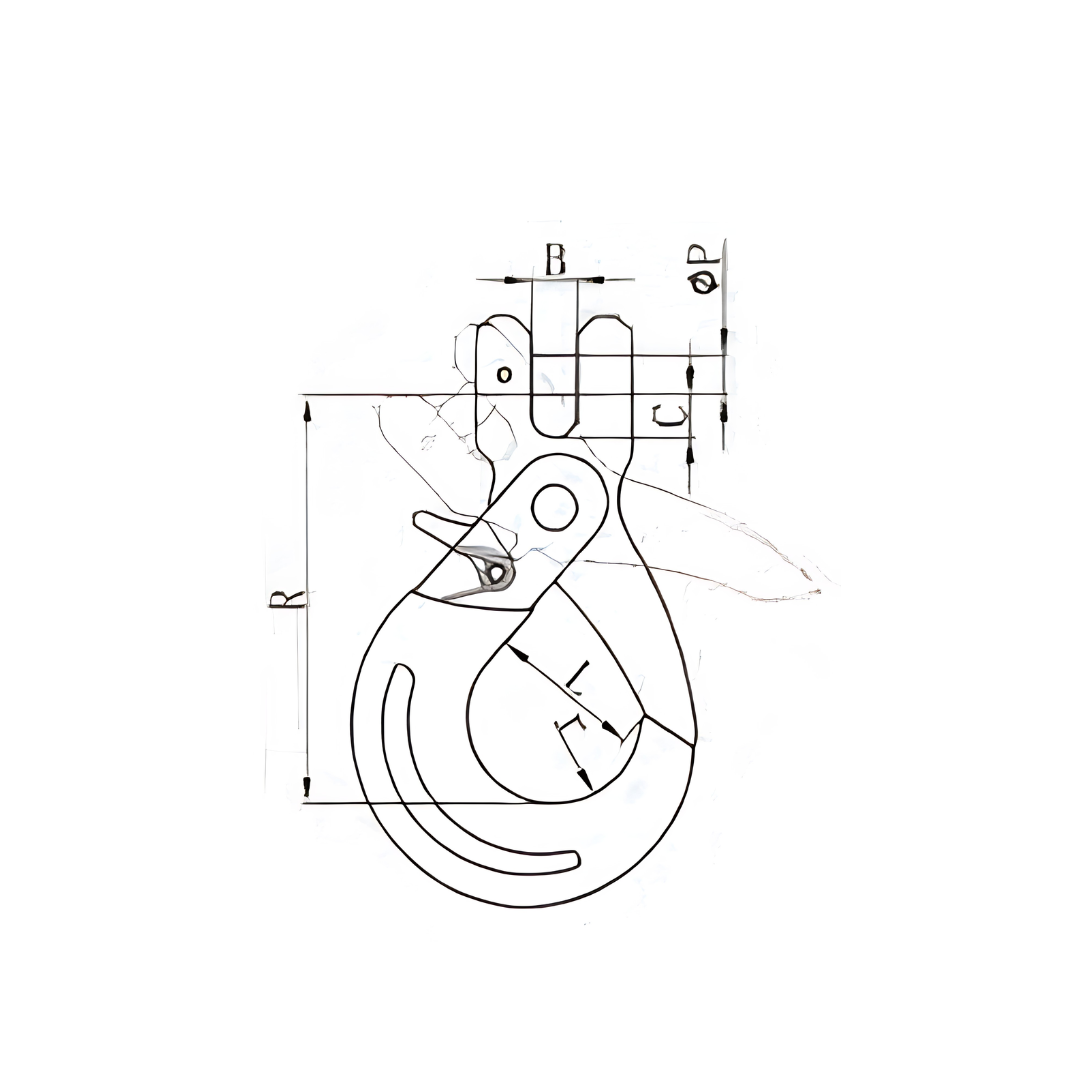

| Size (mm) | B (mm) | C (mm) | L (mm) | P (mm) | R (mm) | r (mm) | W.L.L. (T) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 6 | 9.2 | 7.4 | 28.3 | 7.8 | 96.2 | 16.5 | 1.4 | 0.49 |
| 8 | 9.5 | 8.8 | 33.2 | 10.3 | 119.5 | 21.0 | 2.5 | 0.89 |
| 10 | 12.8 | 15.0 | 43.1 | 13.0 | 142.3 | 27.5 | 4 | 1.48 |
| 13 | 15.0 | 18.0 | 51.5 | 16.5 | 185.1 | 33.6 | 6.7 | 3.20 |
| 16 | 19.0 | 20.5 | 61.6 | 20.0 | 217.5 | 41.3 | 10 | 6.01 |
| 20 | 25.4 | 26.0 | 84.0 | 24.0 | 228.2 | 47.8 | 16 | 8.38 |
| 22 | 24.5 | 26.0 | 77.4 | 28.0 | 269.9 | 47.4 | 19 | 11.88 |
