Beam Clamp (Universal)

₹600.00

Brand – Mega Link
Usage/Application – Vertical and side load lifting; pulling at angles; semi-permanent anchor point
Material – Steel
Color – Black
Country Of Origin – India Standard – EN13157
Specification
  • Universal beam clamp designed for vertical use and side load applications where conventional clamps are not suitable
  • Suitable for pulling and lifting at angles across the beam or as a semi-permanent anchor point
  • Eliminates the use of spreader beams in various lifting operations
  • Fitted with an adjustable locking mechanism ensuring secure clamping to beam
  • Built-in suspension point for low headroom design
  • Lightweight design allowing for quick clamping and unclamping
Download Brochure
Enquire Now
Category:

Description

Lifting Clamps Description: The Universal Beam Clamp (EN13157) is engineered for both vertical and side load lifting operations, eliminating the need for spreader beams. Its adjustable locking mechanism ensures secure clamping across beam flanges, and a built-in suspension point enables use in low headroom environments. Available in WLL 2 to 10 tonnes.

Technical Data

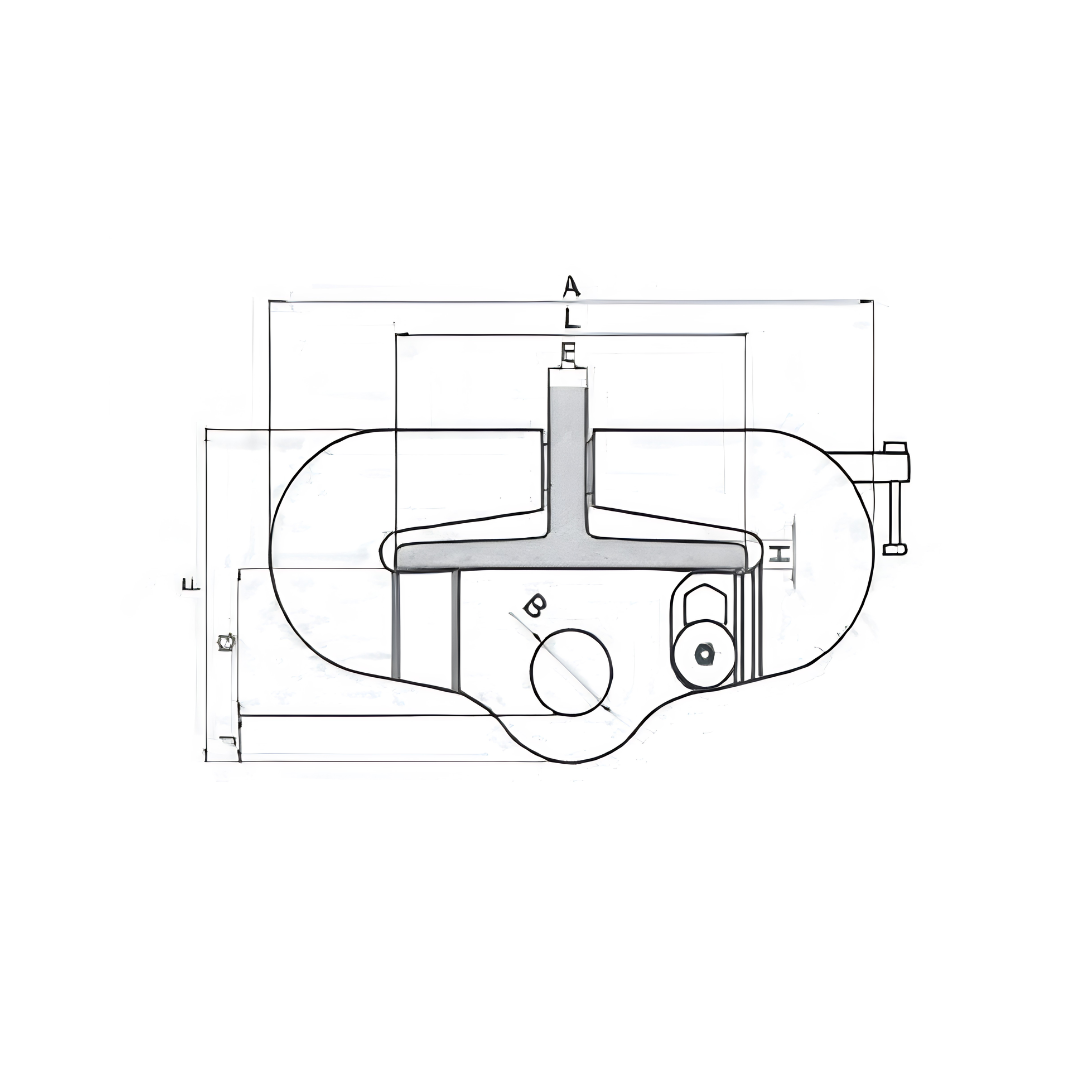

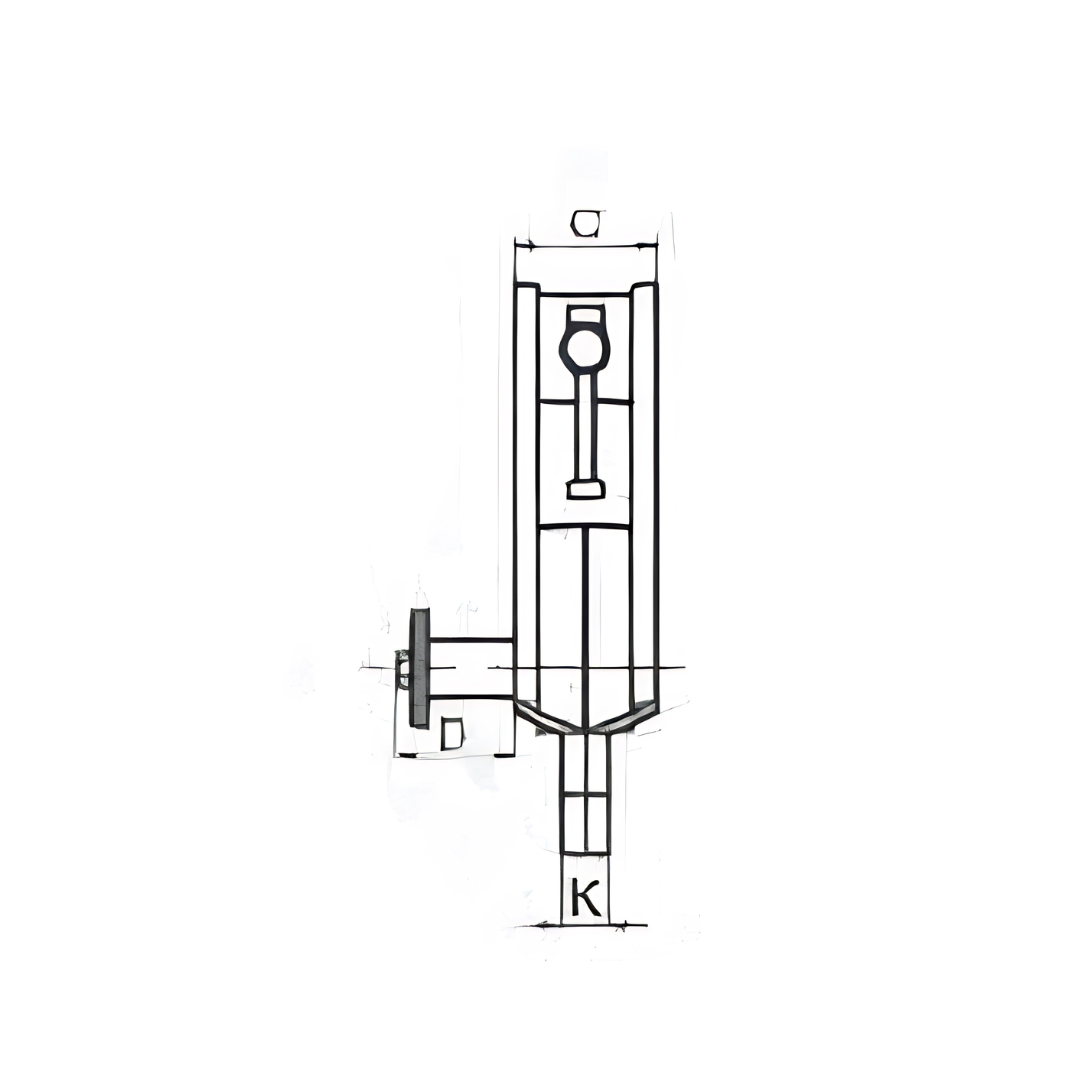

Model WLL (t) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) J (mm) K (mm) L (mm) Net Weight (kg)
DLBC-2 2 375 58 70 57 32 217 93 25 23 16 125–204 10.6
DLBC-3 3 387 60 70 57 32 235 100 25 28 20 125–204 12.50
DLBC-5 5 527 70 74 60 32 270 120 25 38 24 125–305 20.50
DLBC-10 10 527 70 74 60 32 278 120 25 38 24 125–305 24.50

Category: Material Handling
