DPH Pipe Lifting Clamp

Rs
600
Brand – Mega Link
Usage/Application – Horizontal lifting and transporting of steel and concrete pipes
Country Of Origin – India Standard

Material – Carbon Steel

Specification
  • For horizontal lifting and transporting of steel and concrete pipes
  • Compact shape and relatively low own weight with a high lifting capacity
  • Surface equipped with “special” plastic
  • Delivered per pair
  • Plastic cover is easy to change
Download Brochure
Enquire Now
Category:

Description

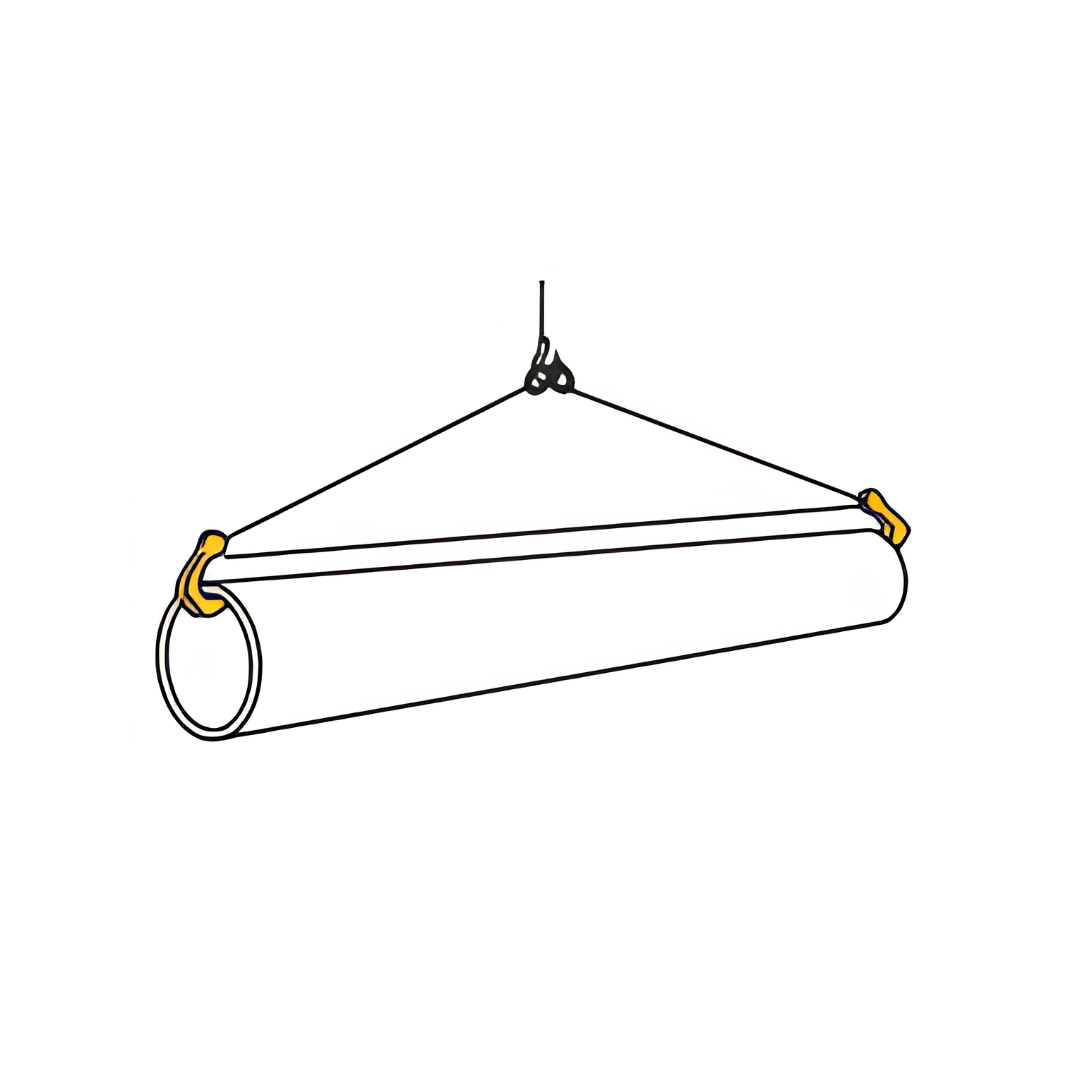

The DPH Pipe Lifting Clamp is designed for horizontal lifting and transporting of steel and concrete pipes. Featuring a compact, lightweight design with high lifting capacity, it is delivered in pairs with a “special” plastic surface finish. Available in sizes from 5 to 26 with WLL up to 20 tonnes per pair.

Technical Data

Model WLL (t) per Pair Jaw Opening (mm) A (mm) B (mm) C (mm) D (mm) E (mm) T (mm) Net Weight (kg)
5 1.5 40 122 30 195 70 39 Φ25 2.2
6.5 3.0 40 122 30 195 70 39 Φ25 2.6
8 4.0 50 122 30 215 70 39 Φ28 2.9
10 6.0 50 122 30 215 70 39 Φ28 3.5
13 8.0 70 126 30 240 70 39 Φ28 3.8
16 12.0 70 160 30 260 90 45 Φ36 6.7
19 16.0 70 168 30 272 90 50 Φ37 9.4
22 18.0 70 183 30 292 90 50 Φ37 13.0
26 20.0 70 220 30 333 90 50 Φ45 19.3

Category: Lifting Clamps
