Description
The DLT Hand Pallet Truck is a manually operated pallet truck designed for efficient transport and lifting of palletized loads. Available with nylon or PU wheels and welding or casting pump options, it supports load capacities of 2000 and 2500 kg with a lift height of 110 mm for smooth warehouse operations.Technical Data

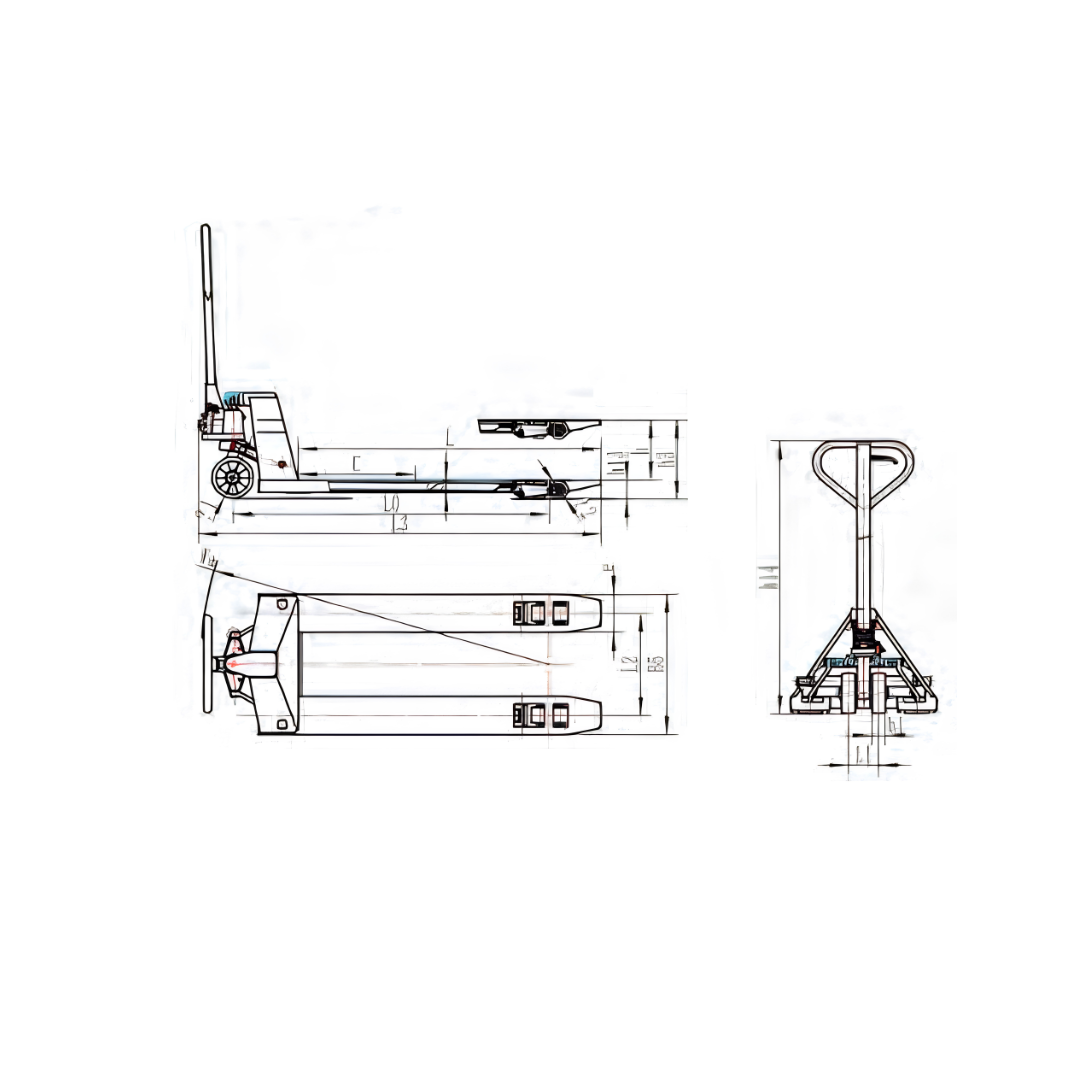

| Manufacturer | Unit | Heami Machinery |
|---|---|---|
| Model | DLT | |
| Drive | Manual | |
| Load capacity (Q) | kg | 2000/2500 |
| Load centre distance (C) | mm | 478 / 536 |
| Wheelbase (L0) | mm | 1202 / 1252 |
| Net weight | kg | 50–60 |
| Steer wheel | mm | Ø160×50 |
| Load wheel | mm | Ø70×60 |
| Wheels, number steer/load | 2/4 | |
| Tread width, steer (L1) | mm | 128 |
| Tread width, load (L2) | mm | 400 / 535 |
| Lift (h) | mm | 110 |
| Height of tiller in drive position (h14) | mm | 1072 |
| Height raised (h3) | mm | 185 |
| Height lowered (h13) | mm | 75 |
| Overall length (L3) | mm | 1529 / 1579 |
| Width across forks (b5) | mm | 550 / 685 |
| Fork dimensions (s/e/l) | mm | 47/150/1150 / 47/150/1200 |
| Turning radius (Wa) | mm | 1322 / 1372 |
