Description
Mega Link Dee Shackles are forged, quenched and tempered alloy steel D-shackles with a maximum proof load of 2.2× WLL and ultimate load of 6× WLL. Available with screw pin (G-210), round pin (G-215), or bolt type (G-2150), they cover chain sizes from 1/4″ to 3″ with WLL from 0.5T to 85T for versatile rigging and load attachment.Technical Data

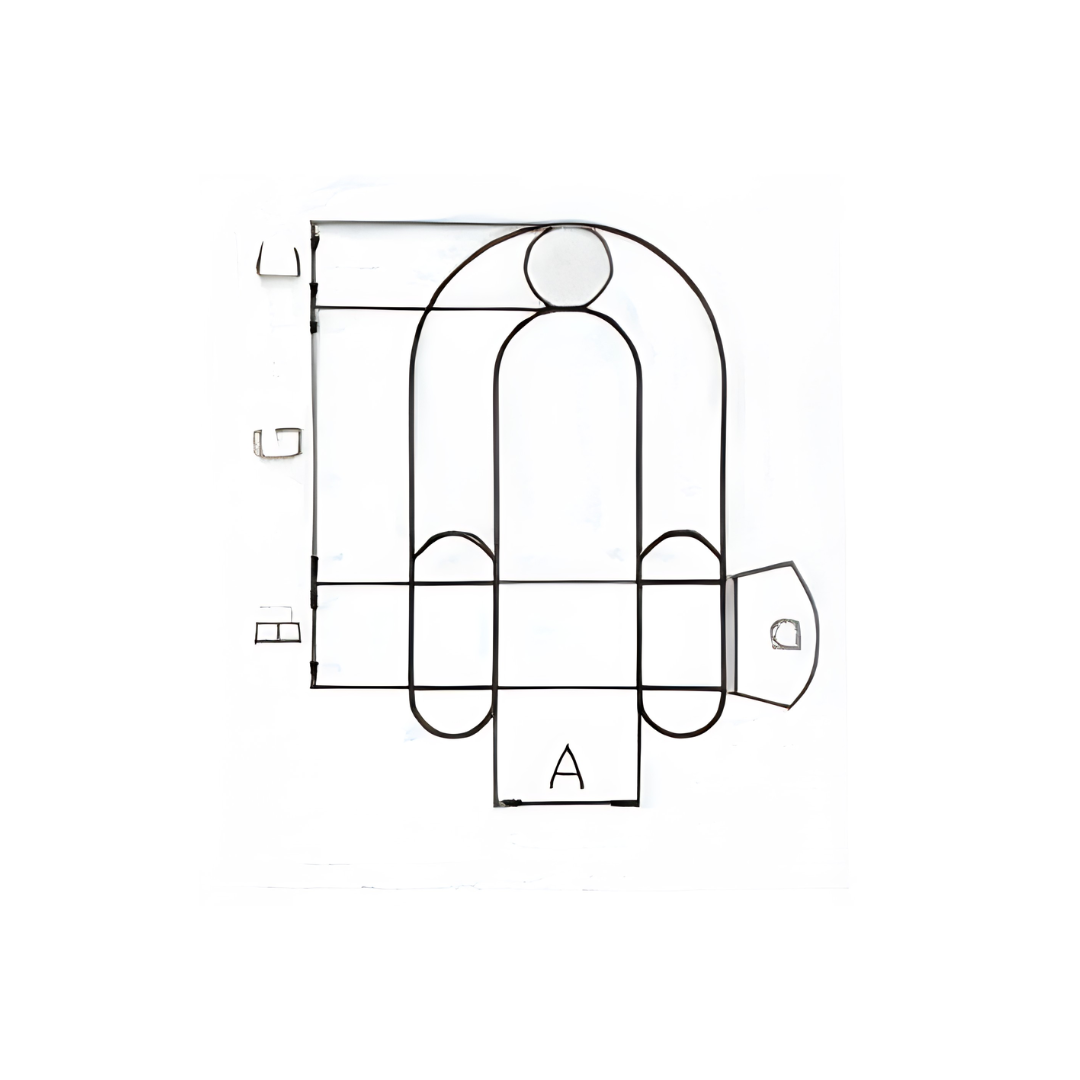

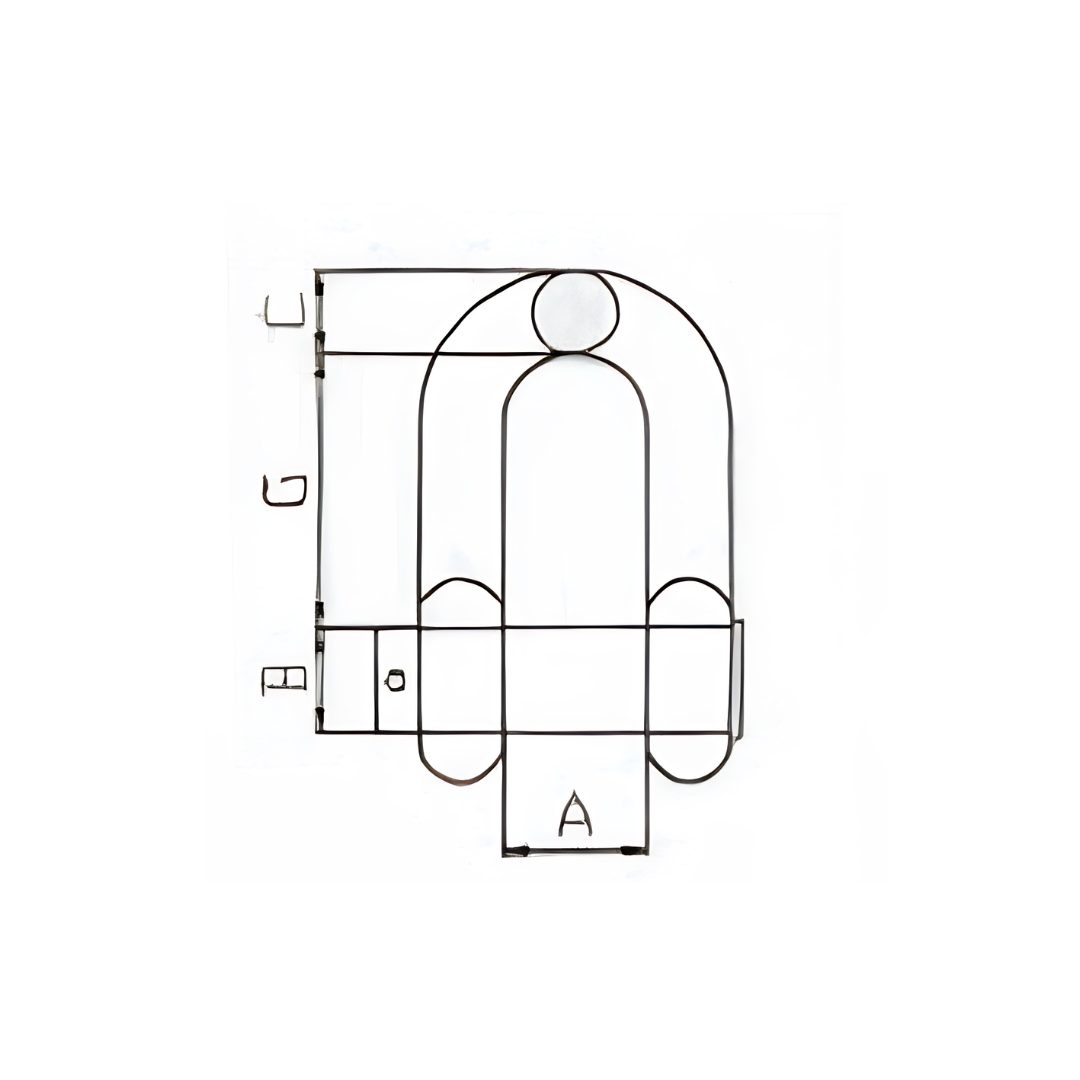

| Size of Chain (in) | Size of Chain (mm) | A (mm) | B (mm) | C (mm) | G (mm) | W.L.L. (T) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 1/4 | 6 | 12.3 | 7.9 | 7.0 | 21.7 | 0.5 | 0.06 |
| 5/16 | 8 | 12.8 | 8.4 | 8.1 | 25.3 | 0.75 | 0.10 |
| 3/8 | 10 | 17.5 | 11.0 | 10.0 | 30.2 | 1 | 0.15 |
| 7/16 | 11 | 19.6 | 11.6 | 11.1 | 36.0 | 1.5 | 0.22 |
| 1/2 | 13 | 20.5 | 16.0 | 12.7 | 41.0 | 2 | 0.34 |
| 5/8 | 16 | 28.0 | 19.0 | 16.0 | 50.5 | 3.25 | 0.67 |
| 3/4 | 19 | 32.0 | 22.0 | 19.0 | 60.5 | 4.75 | 1.14 |
| 7/8 | 22 | 38.5 | 25.0 | 22.0 | 72.0 | 6.5 | 1.74 |
| 1 | 25 | 44.5 | 28.0 | 25.0 | 81.0 | 8.5 | 2.52 |
| 1 1/8 | 29 | 46.0 | 32.0 | 28.5 | 92.0 | 9.5 | 3.45 |
| 1 1/4 | 32 | 51.0 | 35.0 | 32.0 | 99.0 | 12 | 4.90 |
| 1 3/8 | 35 | 58.0 | 38.0 | 35.0 | 114.0 | 13.5 | 6.24 |
| 1 1/2 | 38 | 60.5 | 42.0 | 38.0 | 122.0 | 17 | 8.39 |
| 1 3/4 | 45 | 76.6 | 50.0 | 45.0 | 146.0 | 25 | 14.20 |
| 2 | 51 | 83.0 | 57.0 | 51.0 | 172.0 | 35 | 21.20 |
| 2 1/2 | 63 | 106.5 | 69.0 | 64.0 | 203.0 | 55 | 38.60 |
| 3 | 76 | 128.7 | 82.0 | 77.0 | 216.0 | 85 | 56.00 |
