Description

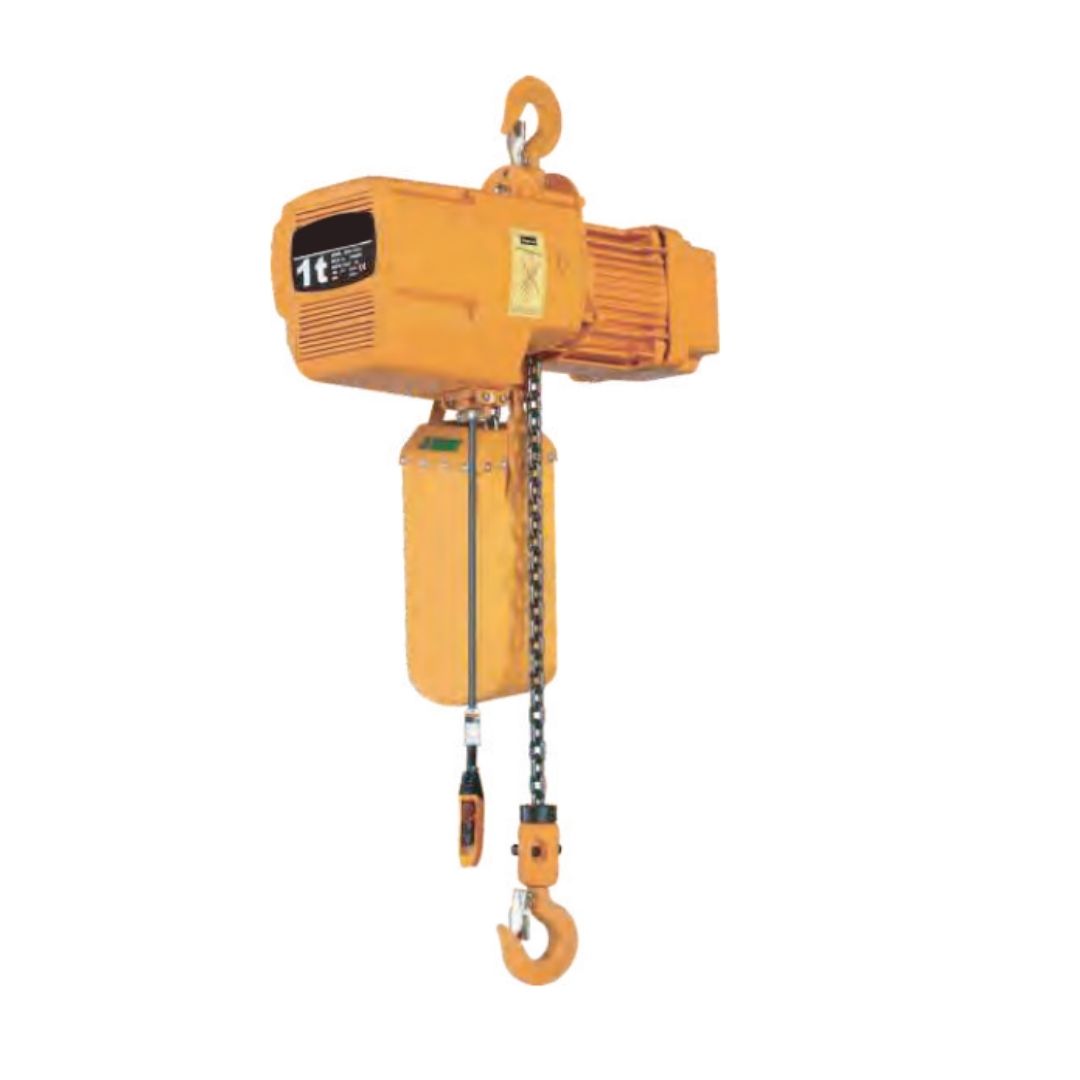

The DLED Electric Hoist with Hook (0.5–5 tons) provides powered lifting with single speed and frequency conversion options. Safety features include an overload clutch, inverse phase sequence protection, limit switch, side magnetic braking, and emergency stop. It uses Japan FECBO ultra heat-treatable steel alloy chain, with optional wireless remote control and overheat protection.Technical Data
| Model | Capacity Load (t) | Hoisting Height (m) | Single Speed (m/min) | Single Speed & Frequency Conversion | Power (kW) | Single Speed (r/min) | Double Speed (r/min) | Number of Phase | Voltage (V) | Frequency (Hz/s) |
|---|---|---|---|---|---|---|---|---|---|---|
| DLED-00501 | 0.5 | 3 | 6.8 | 6.8 & 1.7 | 0.75 | 1440 | 1440 & 360 | 3 | 200-600 | 50 |
| DLED-0101 | 1 | 3 | 6.6 | 6.6 & 1.65 | 1.5 | 1440 | 1440 & 360 | 3 | 200-600 | 50 |
| DLED-0102 | 1 | 3 | 3.4 | 3.4 & 0.85 | 0.75 | 1440 | 1440 & 360 | 3 | 200-600 | 50 |
| DLED-01501 | 1.5 | 3 | 8.8 | 8.8 & 2.2 | 3.0 | 1440 | 1440 & 360 | 3 | 200-600 | 50 |
| DLED-0201 | 2 | 3 | 6.6 | 6.6 & 1.65 | 3.0 | 1440 | 1440 & 360 | 3 | 200-600 | 50 |
| DLED-0202 | 2 | 3 | 3.3 | 3.3 & 0.82 | 1.5 | 1440 | 1440 & 360 | 3 | 200-600 | 50 |
| DLED-02501 | 2.5 | 3 | 5.4 | 5.4 & 1.35 | 3.0 | 1440 | 1440 & 360 | 3 | 200-600 | 50 |
| DLED-0301 | 3 | 3 | 5.4 | 5.4 & 1.35 | 3.0 | 1440 | 1440 & 360 | 3 | 200-600 | 50 |
| DLED-0302 | 3 | 3 | 4.4 | 4.4 & 1.1 | 3.0 | 1440 | 1440 & 360 | 3 | 200-600 | 50 |
| DLED-0303 | 3 | 3 | 2.2 | 2.2 & 0.55 | 1.5 | 1440 | 1440 & 360 | 3 | 200-600 | 50 |
| DLED-0502 | 5 | 3 | 2.7 | 2.7 & 0.67 | 3.0 | 1440 | 1440 & 360 | 3 | 200-600 | 50 |

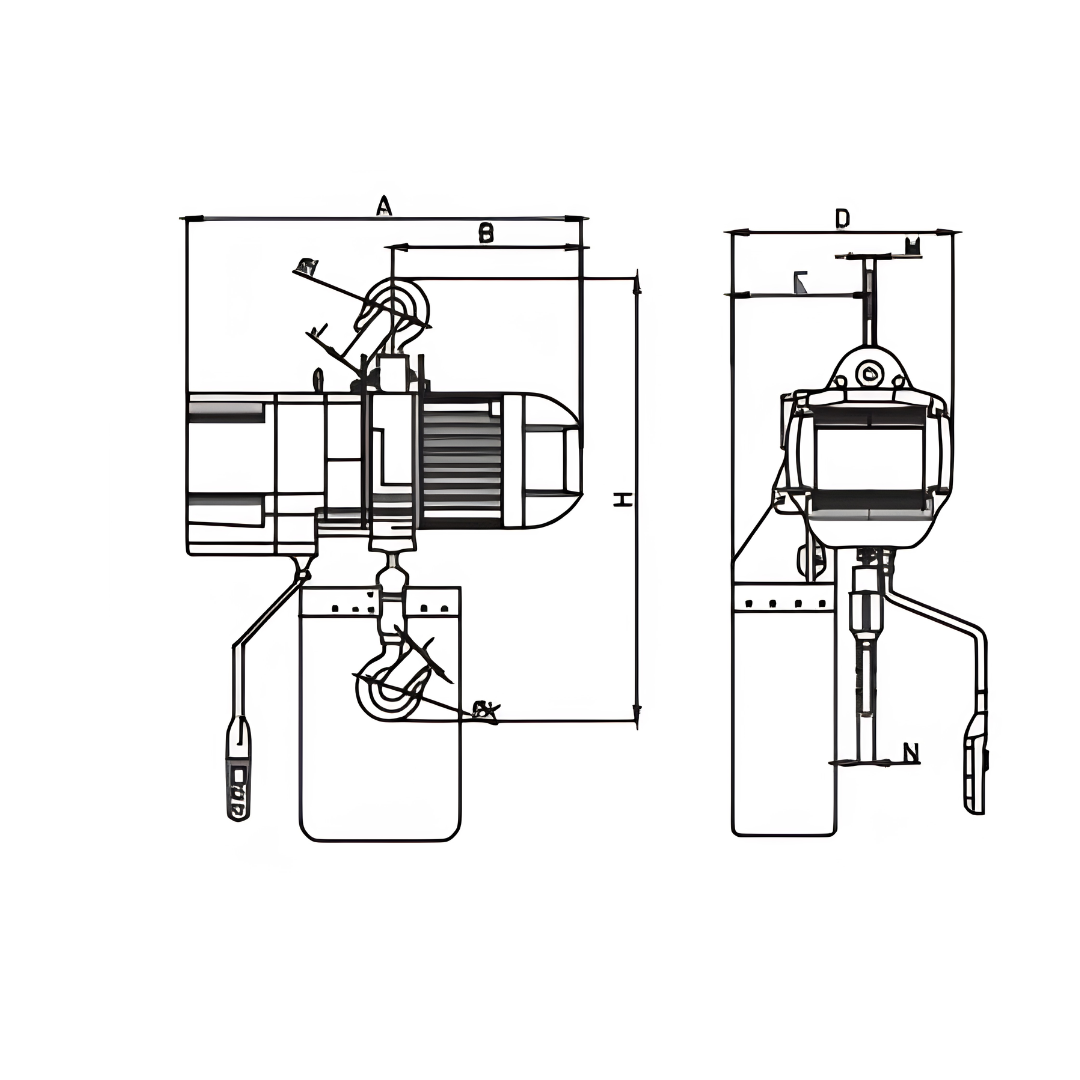

Size Specification Table
| H | A | B | D | E | I (Single) | I (Double) | J | K (Single) | K (Double) | L | M | N | Diameter × Number of Chains |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 455 | 566 | 266 | 285 | 165 | Φ35 | Φ35 | 27 | Φ34 | Φ34 | 25 | 17 | 17 | Φ6.3×1 |
| 520 | 627 | 302 | 300 | 176 | Φ42 | Φ42 | 32 | Φ41 | Φ41 | 32 | 24 | 24 | Φ7.1×1 |
| 490 | 566 | 266 | 285 | 165 | Φ42 | Φ35 | 32 | Φ41 | Φ35 | 32 | 24 | 24 | Φ6.3×2 |
| 640 | 733 | 343 | 430 | 265 | Φ48 | Φ48 | 38 | Φ49 | Φ49 | 40 | 28 | 28 | Φ10.0×1 |
| 640 | 733 | 343 | 430 | 265 | Φ48 | Φ48 | 38 | Φ49 | Φ49 | 40 | 28 | 28 | Φ10.0×1 |
| 705 | 627 | 302 | 300 | 236 | Φ48 | Φ48 | 38 | Φ49 | Φ49 | 40 | 28 | 28 | Φ7.1×2 |
| 685 | 733 | 343 | 430 | 265 | Φ59 | Φ59 | 48 | Φ59 | Φ59 | 48 | 34 | 34 | Φ11.2×1 |
| 685 | 733 | 343 | 430 | 265 | Φ59 | Φ59 | 48 | Φ59 | Φ59 | 48 | 34 | 34 | Φ11.2×1 |
| 790 | 733 | 343 | 430 | 320 | Φ59 | Φ59 | 48 | Φ59 | Φ59 | 48 | 34 | 34 | Φ10.0×2 |
| 820 | 627 | 302 | 350 | 205 | Φ59 | Φ59 | 48 | Φ59 | Φ59 | 48 | 34 | 34 | Φ7.1×3 |
| 870 | 733 | 343 | 430 | 325 | Φ60 | Φ59 | 48 | Φ60 | Φ60 | 48 | 42 | 42 | Φ11.2×2 |
