Description
Bow-type G100 Connecting Link manufactured from forged super alloy steel, designed for versatile connection in G100 chain sling assemblies. Each link undergoes 100% proof testing at 2.5x WLL, magnaflux crack detection, and fatigue testing to 20,000 cycles, ensuring robust and safe performance in critical overhead lifting operations.
Technical Data

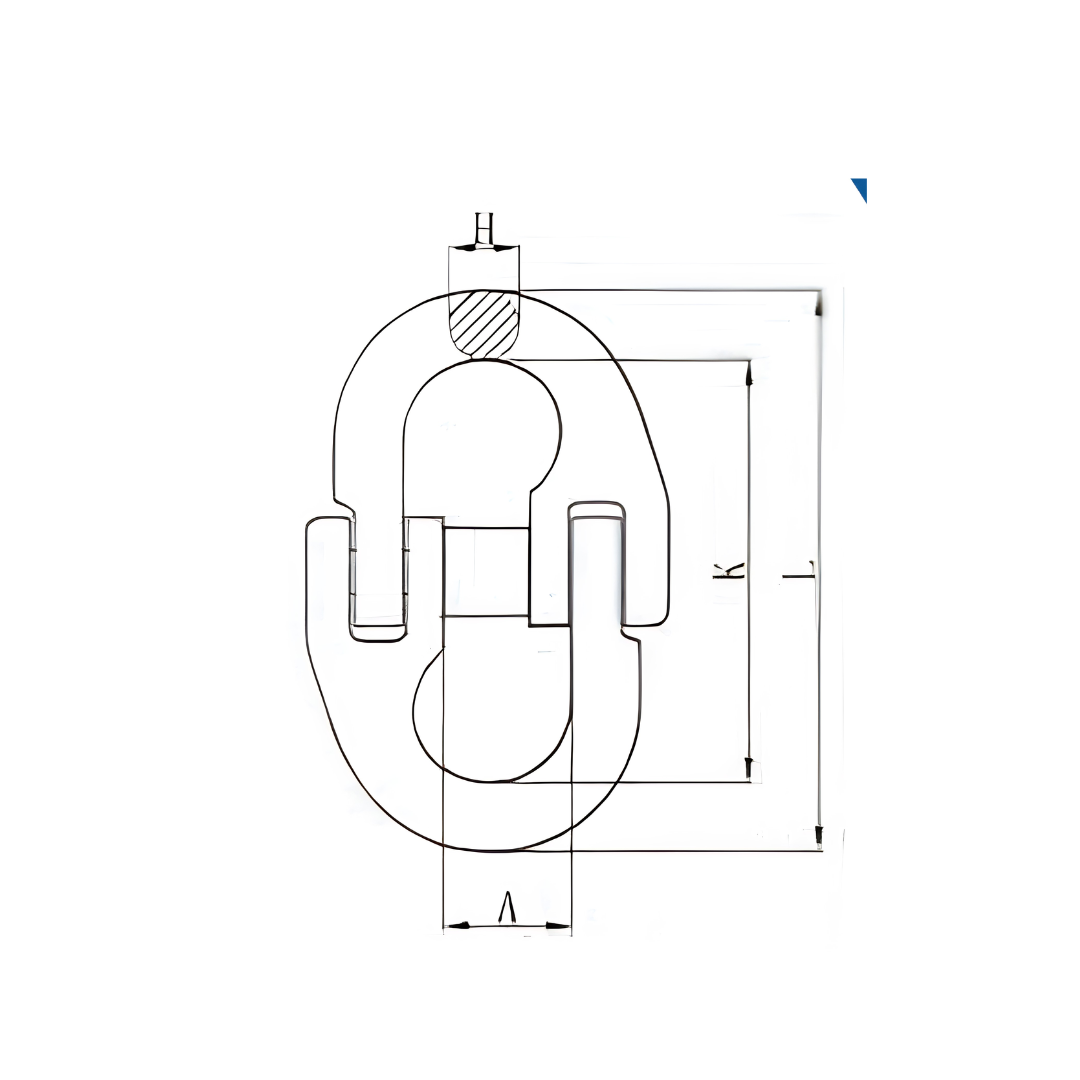

| Size (mm) | L (mm) | K (mm) | A (mm) | H (mm) | W.L.L. (T) | Weight (kg) |
|---|---|---|---|---|---|---|
| 6 | 59.6 | 43.7 | 14.1 | 7.3 | 1.4 | 0.08 |
| 7 | 73.3 | 53.3 | 19.0 | 8.5 | 2 | 0.15 |
| 8 | 85.6 | 62.4 | 19.4 | 9.8 | 2.5 | 0.22 |
| 10 | 101.2 | 71.2 | 24.0 | 12.5 | 4 | 0.41 |
| 13 | 128.0 | 89.0 | 27.9 | 16.4 | 6.7 | 0.89 |
| 16 | 159.8 | 113.0 | 34.0 | 19.8 | 10 | 1.82 |
| 20 | 189.5 | 125.8 | 44.6 | 24.0 | 16 | 3.10 |
| 22 | 228.0 | 155.2 | 52.0 | 25.5 | 19 | 4.86 |
| 26 | 258.2 | 178.0 | 61.6 | 30.2 | 26.5 | 7.16 |
| 32 | 299.4 | 207.4 | 80.4 | 36.8 | 40 | 11.90 |
