8 x 19S-FC Wire Ropes

8-Strand Wire Rope An 8×19 Seale fiber core wire rope providing superior drum spooling performance and flexibility over equivalent 6-strand ropes. Ideal for mobile cranes, offshore winches, and construction hoisting. Available from 8mm to 60mm across grades 1570–2160 MPa.

Brand – Mega Link
Usage/Application – Mobile cranes, offshore winches, construction hoisting — 8-strand design for better drum spooling

Color – Bright (Ungalvanised) / Galvanised
Material – High Carbon Steel (Carbon 0.4–1%, Manganese 0.3–1%)
Country Of Origin – India

Standard – IS / EN 12385

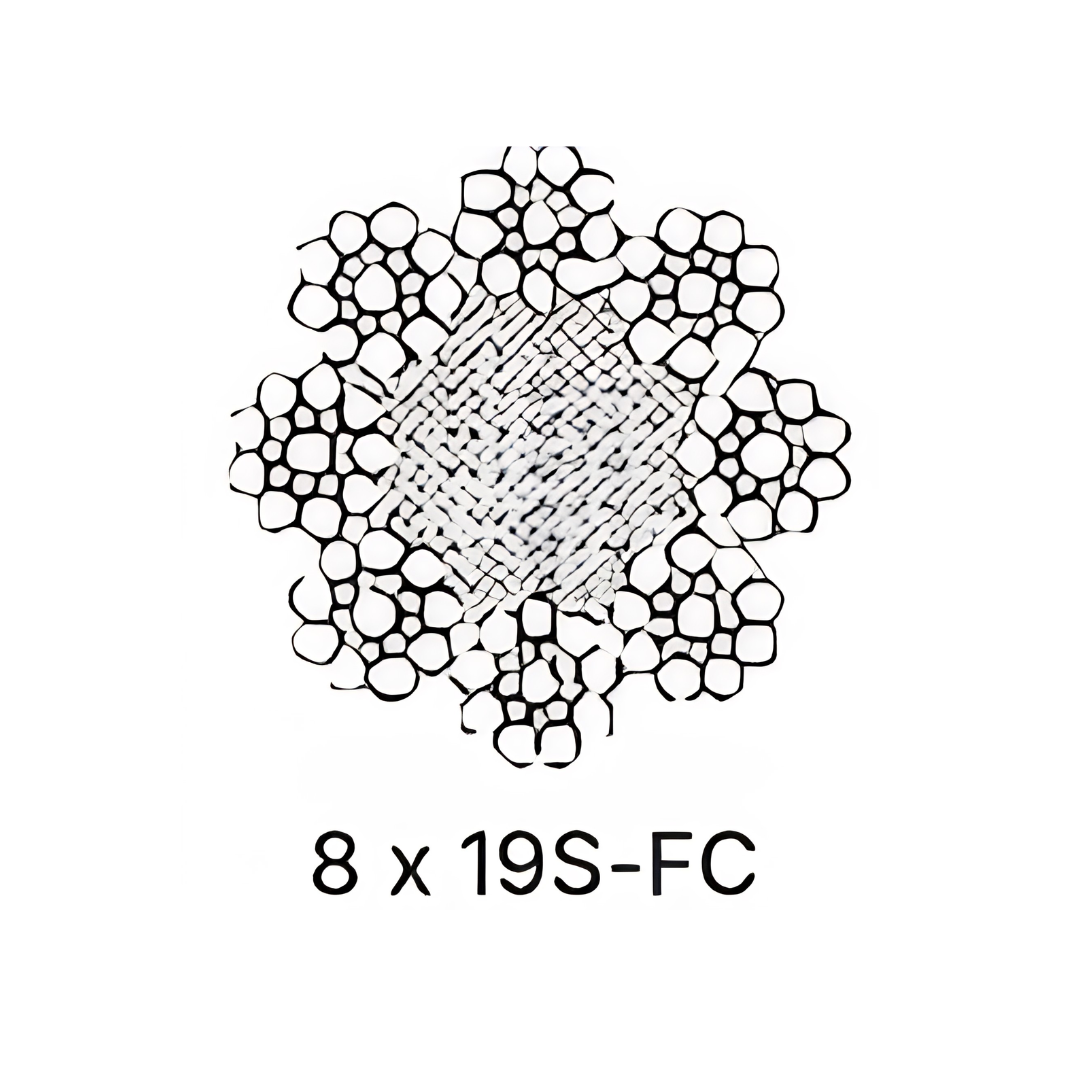

Specification – 8 strands × 19 wires, Seale construction, Fiber Core (FC)

Download Brochure
Enquire Now

Description

Technical Data (Refer to 6×K19S-IWRC table.)

Nominal Rope Diameter (mm)	Approx Weight FC (kg/100m)	MBL 1570 FC (kN)	MBL 1770 FC (kN)	MBL 1960 FC (kN)	MBL 2160 FC (kN)
8	22.8	29.4	33.2	36.8	40.5
9	28.9	37.3	42.0	46.5	51.3
10	35.7	46.0	51.9	57.4	63.3
11	43.2	55.7	62.8	69.5	76.6
12	51.4	66.2	74.7	82.7	91.1
13	60.3	77.7	87.6	97.1	107
14	70.0	90.2	102	113	124
16	91.4	118	133	147	162
18	116	149	168	186	205
20	143	184	207	230	253
22	173	223	251	278	306
24	206	265	299	331	365
26	241	311	351	388	428
28	280	361	407	450	496
32	366	471	531	588	648
36	463	596	672	744	820
40	571	736	830	919	1010
44	691	891	1000	1110	1230
48	823	1060	1190	1320	1460
52	965	1240	1400	1550	1710
56	1120	1440	1630	1800	1980
60	1290	1660	1870	2070	2280
