Specifications

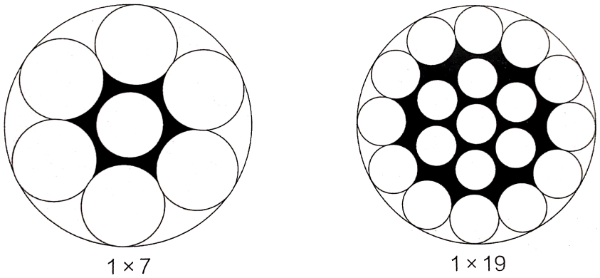

| Construction | Nominal Diam (Inch) | Tolerance of Dia. (mm) | Min. Breaking Load (KN) | Approximate weight (kg/100m) |
|---|---|---|---|---|
| 1 x 7 | 0.15 | 0/+0.03 | 0.025 | 0.011 |
| 1 x 7 | 0.25 | 0/+0.03 | 0.063 | 0.031 |
| 1 x 7 | 0.30 | 0/+0.03 | 0.093 | 0.044 |
| 1 x 7 | 0.35 | 0/+0.03 | 0.127 | 0.061 |
| 1 x 7 | 0.40 | 0/+0.03 | 0.157 | 0.080 |
| 1 x 7 | 0.45 | 0/+0.03 | 0.200 | 0.100 |
| 1 x 7 | 0.50 | 0/+0.06 | 0.255 | 0.125 |
| 1 x 7 | 0.60 | 0/+0.06 | 0.382 | 0.180 |
| 1 x 7 | 0.70 | 0/+0.06 | 0.540 | 0.245 |
| 1 x 7 | 0.80 | 0/+0.10 | 0.667 | 0.327 |
| 1 x 7 | 0.90 | 0/+0.10 | 0.823 | 0.400 |
| 1 x 7 | 1.00 | 0/+0.10 | 1.000 | 0.500 |
| 1 x 7 | 1.20 | 0/+0.10 | 1.320 | 0.700 |
| 1 x 19 | 0.60 | 0/+0.08 | 0.343 | 0.175 |
| 1 x 19 | 0.70 | 0/+0.08 | 0.470 | 0.240 |
| 1 x 19 | 0.80 | 0/+0.08 | 0.617 | 0.310 |
| 1 x 19 | 0.90 | 0/+0.09 | 0.774 | 0.390 |
| 1 x 19 | 1.00 | 0/+0.10 | 0.950 | 0.500 |
| 1 x 19 | 1.20 | 0/+0.12 | 1.270 | 0.700 |
| 1 x 19 | 1.50 | 0/+0.12 | 2.250 | 1.100 |
| 1 x 19 | 2.00 | 0/+0.12 | 3.820 | 2.000 |
| 1 x 19 | 2.50 | 0/+0.25 | 5.580 | 3.130 |
| 1 x 19 | 3.00 | 0/+0.30 | 8.030 | 4.500 |
| 1 x 19 | 3.50 | 0/+0.35 | 10.600 | 6.130 |
| 1 x 19 | 4.00 | 0/+0.40 | 13.900 | 8.190 |
| 1 x 19 | 5.00 | 0/+0.50 | 21.000 | 12.900 |
| 1 x 19 | 6.00 | 0/+0.60 | 30.400 | 18.500 |
